Hy-Pro

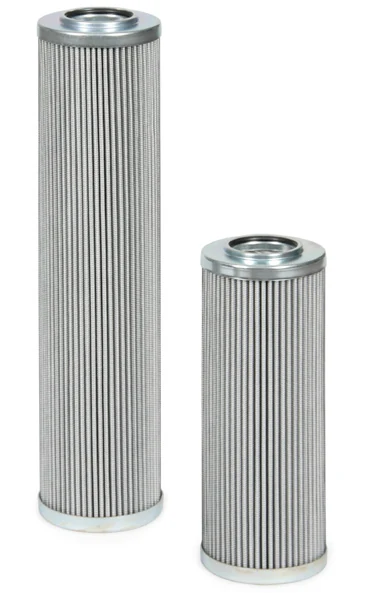

Hy-Pro HPVL14-6MV
HPVL series filter element
Hy-Pro HPVL14-6MV specifications
The Hy-Pro HPVL14-6MV is a 6µm dualglass filter element. Filtration efficiency is rated at β4000 per ISO 16889. Seals are Fluorocarbon (Viton), rated for -20°F to 250°F. 4 verified cross-references are available from aftermarket manufacturers.
Physical fit
- Outer Diameter (O.D.)
- Not yet verified from an OEM source
- Inner Diameter (I.D.)
- Not yet verified from an OEM source
- Overall Length
- Not yet verified from an OEM source
- Micron Rating
- 6µmOEM-published
- Seal Material
- Fluorocarbon (Viton)OEM-published
- Connection / Thread
- Not yet verified from an OEM source
Performance: Hy-Pro published values
These are Hy-Pro's own published numbers. Performance specs differ by brand and are never inherited across cross-references.
- Efficiency (ISO 16889)
- β4000
- Efficiency
- 99.97%
- Media Type
- DualglassG8 High-performance glass fiber media
- Operating Temperature
- -20°F to 250°F
- Series
- HPVL
About the Hy-Pro HPVL14-6MV
Hy-Pro HPVL14-6MV is a filter element rated at 6 µm (6 µm nominal), a beta ratio of β ≥ 4000, and measuring 14 in length. It uses Dualglass media and Fluorocarbon (Viton) seals, rated for -20 °F to 250 °F (Donaldson Hy-Pro HP101 Data Sheet FE-101-071724, p.4).
What replaces the Hy-Pro HPVL14-6MV?
4 published cross-references on file. Select to expand.
What replaces the Hy-Pro HPVL14-6MV?
4 published cross-references on file. Select to expand.
A cross-reference confirms dimensional fit and micron rating, not performance equivalence. Beta ratio, collapse rating, media, and service life can differ between brands.
Published cross-references
Application & Compatibility
The HY-PRO HPVL14-6MV is designed for use in hydraulic and lubrication filtration systems. With a 6µm rating, this element is suitable for proportional valve protection and general hydraulic systems. Fluorocarbon (Viton) seals provide compatibility with petroleum-based fluids, synthetic fluids, phosphate esters, and water-glycol mixtures.
Frequently Asked Questions
What micron rating is the Hy-Pro HPVL14-6MV?
What seal material does the Hy-Pro HPVL14-6MV use?
Is there a cross-reference for the Hy-Pro HPVL14-6MV?
What is the operating temperature range for the Hy-Pro HPVL14-6MV?
How this entry is verified
Every specification on this page names its source: manufacturer documents first, distributor catalogs second, decoded part-number patterns labeled as such. When a value has not been verified from an OEM source, the cell says so. Cross-references are fit claims, never performance claims.
