Hy-Pro
Hy-Pro HPTX4L13-100WB
Industrial filter element
Hy-Pro HPTX4L13-100WB specifications

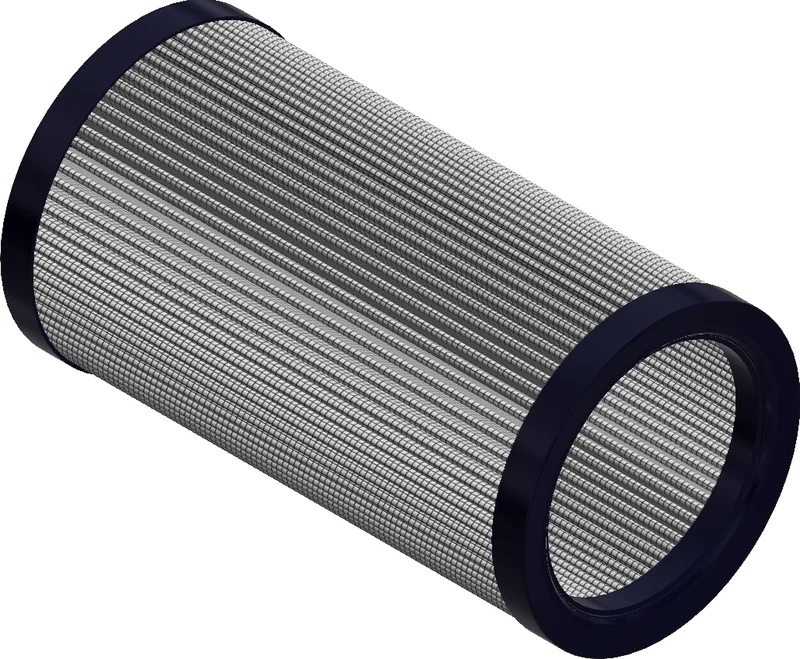

The Hy-Pro HPTX4L13-100WB is a 100µm stainless steel wire mesh filter element. Filtration efficiency is rated at β200 per ISO 16889. Seals are Nitrile (Buna-N), rated for -45°F to 225°F. 8 verified cross-references are available from aftermarket manufacturers.
Physical fit
- Outer Diameter (O.D.)
- Not yet verified from an OEM source
- Inner Diameter (I.D.)
- Not yet verified from an OEM source
- Overall Length
- Not yet verified from an OEM source
- Micron Rating
- 100µmDecoded from part number
- Seal Material
- Nitrile (Buna-N)Decoded from part number
- Connection / Thread
- Not yet verified from an OEM source
Performance: Hy-Pro published values
These are Hy-Pro's own published numbers. Performance specs differ by brand and are never inherited across cross-references.
- Efficiency (ISO 16889)
- β200
- Media Type
- Stainless Steel Wire Mesh
- Operating Temperature
- -45°F to 225°F
About the Hy-Pro HPTX4L13-100WB
Hy-Pro HPTX4L13-100WB hydraulic filter element. Corrosion resistant steel end caps and center tube. Nitrile seals (-45°F to 225°F).
What replaces the Hy-Pro HPTX4L13-100WB?
8 published cross-references on file. Select to expand.
What replaces the Hy-Pro HPTX4L13-100WB?
8 published cross-references on file. Select to expand.
A cross-reference confirms dimensional fit and micron rating, not performance equivalence. Beta ratio, collapse rating, media, and service life can differ between brands.
Published cross-references
| Part Number | Manufacturer | Match |
|---|---|---|
| SFTXW4-13-100UW | Swift Filters | Sourced |
| FC1110M100BS | Finn | Verified |
| FFPAM11110100 | Finn | Verified |
| MR8501M90A | MP Filtri | Verified |
| FT8501M90A | MP Filtri | Verified |
| ST10-100-B | Fairey Arlon | Verified |
| ST10-100 | Fairey Arlon | Verified |
| FC1110M100XS | Finn | Verified |
Application & Compatibility
The HY-PRO HPTX4L13-100WB is designed for use in hydraulic and lubrication filtration systems. With a 100µm rating, this element is suitable for pump and component protection in industrial hydraulic circuits. Nitrile (Buna-N) seals provide compatibility with standard petroleum-based fluids and mineral oils.
Frequently Asked Questions
What micron rating is the Hy-Pro HPTX4L13-100WB?
What seal material does the Hy-Pro HPTX4L13-100WB use?
Is there a cross-reference for the Hy-Pro HPTX4L13-100WB?
What is the operating temperature range for the Hy-Pro HPTX4L13-100WB?
How this entry is verified
Every specification on this page names its source: manufacturer documents first, distributor catalogs second, decoded part-number patterns labeled as such. When a value has not been verified from an OEM source, the cell says so. Cross-references are fit claims, never performance claims.
