Hy-Pro HPMF4L10-10MB
Industrial filter element
Hy-Pro HPMF4L10-10MB specifications

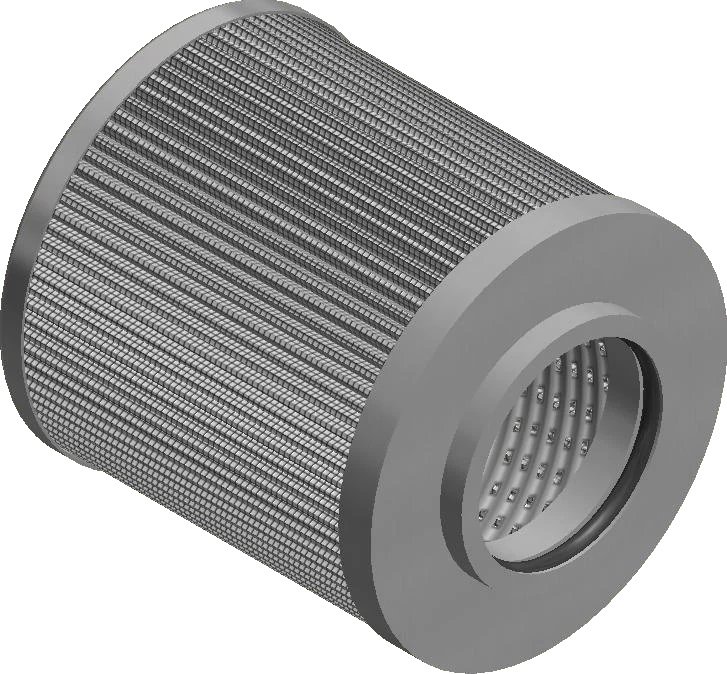

The Hy-Pro HPMF4L10-10MB is a 10µm nominal (β-rated, absolute 11µm) dualglass filter element. Filtration efficiency is rated at β4000 per ISO 16889. Seals are Nitrile (Buna-N), rated for -45°F to 225°F. Collapse pressure rating is 150 PSID. 21 verified cross-references are available from aftermarket manufacturers.
Physical fit
- Outer Diameter (O.D.)
- Not yet verified from an OEM source
- Inner Diameter (I.D.)
- Not yet verified from an OEM source
- Overall Length
- Not yet verified from an OEM source
- Micron Rating
- 10µm nominal (β-rated, absolute 11µm)Inherited from cross-reference
- Seal Material
- Nitrile (Buna-N)Inherited from cross-reference
- Connection / Thread
- Not yet verified from an OEM source
Performance: Hy-Pro published values
These are Hy-Pro's own published numbers. Performance specs differ by brand and are never inherited across cross-references.
- Efficiency (ISO 16889)
- β4000
- Efficiency
- 99.97%
- Media Type
- DualglassG8 High-performance glass fiber media
- Collapse Rating
- 150 PSID
- Operating Temperature
- -45°F to 225°F
About the Hy-Pro HPMF4L10-10MB
Hy-Pro HPMF4L10-10MB is a filter element rated at 11 µm (10 µm nominal), a beta ratio of β ≥ 4000, 150 psid collapse pressure, and measuring 4.98 in OD, 2.475 in ID, and 9.88 in length. It uses Dualglass media and Nitrile (Buna-N) seals, rated for -45 °F to 225 °F (Donaldson Hy-Pro HP101 Data Sheet FE-101-071724, p.4).
What replaces the Hy-Pro HPMF4L10-10MB?
21 published cross-references on file. Select to expand.
What replaces the Hy-Pro HPMF4L10-10MB?
21 published cross-references on file. Select to expand.
A cross-reference confirms dimensional fit and micron rating, not performance equivalence. Beta ratio, collapse rating, media, and service life can differ between brands.
Published cross-references
| Part Number | Manufacturer | Match |
|---|---|---|
| SFMF4-10-12UM | Swift | Sourced |
| KHF171573 | Keltec | Sourced |
| MF4003P10NB | MP Filtri | Verified |
| MF4003A10HB | MP Filtri | Verified |
| CR600.1 | Donaldson | Verified |
| F60P10NA | MP Filtri | Verified |
| CR350A | OMT | Verified |
| RE150CD1 | Sofima | Verified |
| ERA53NCC | UFI | Verified |
| CR600.02 | Donaldson | Verified |
| 510669708 | Liebherr | Verified |
| F60A10NA | MP Filtri | Verified |
| MF4003A10NB | MP Filtri | Verified |
| CR350G | OMT | Verified |
| RE150FD1 | Sofima | Verified |
| ERA53NFC | UFI | Verified |
| FR164C10B | Fram | Verified |
| FR164G10B | Fram | Verified |
| PT9261-MPG | Baldwin | Verified |
| 1457-43-1606 | Bosch | Verified |
| P171573 | Donaldson | Verified |
Application & Compatibility
The HY-PRO HPMF4L10-10MB is designed for use in industrial filtration applications. Rated at 10µm nominal (β-rated, absolute 11µm). Nitrile (Buna-N) seals provide compatibility with standard petroleum-based fluids and mineral oils.
The 150 PSID collapse rating indicates the maximum differential pressure this element can withstand during cold starts or bypass conditions without structural failure. Ensure your system's maximum differential pressure does not exceed this rating.
Frequently Asked Questions
What micron rating is the Hy-Pro HPMF4L10-10MB?
What seal material does the Hy-Pro HPMF4L10-10MB use?
Is there a cross-reference for the Hy-Pro HPMF4L10-10MB?
What is the collapse pressure rating of the Hy-Pro HPMF4L10-10MB?
What is the operating temperature range for the Hy-Pro HPMF4L10-10MB?
How this entry is verified
Every specification on this page names its source: manufacturer documents first, distributor catalogs second, decoded part-number patterns labeled as such. When a value has not been verified from an OEM source, the cell says so. Cross-references are fit claims, never performance claims.
