Hy-Pro
Hy-Pro HPMF1L6-125WB
Industrial filter element
Hy-Pro HPMF1L6-125WB specifications
The Hy-Pro HPMF1L6-125WB is a 125µm nominal (β-rated, absolute 25µm) ss wire mesh filter element. Filtration efficiency is rated at β200 per ISO 16889. Seals are Nitrile (Buna-N), rated for -45°F to 225°F. Collapse pressure rating is 150 PSID. 1 verified cross-reference is available from aftermarket manufacturers.
Physical fit
- Outer Diameter (O.D.)
- Not yet verified from an OEM source
- Inner Diameter (I.D.)
- Not yet verified from an OEM source
- Overall Length
- Not yet verified from an OEM source
- Micron Rating
- 125µm nominal (β-rated, absolute 25µm)Decoded from part number
- Seal Material
- Nitrile (Buna-N)Decoded from part number
- Connection / Thread
- Not yet verified from an OEM source
Performance: Hy-Pro published values
These are Hy-Pro's own published numbers. Performance specs differ by brand and are never inherited across cross-references.
- Efficiency (ISO 16889)
- β200
- Media Type
- SS Wire MeshStainless steel wire mesh
- Collapse Rating
- 150 PSID
- Operating Temperature
- -45°F to 225°F

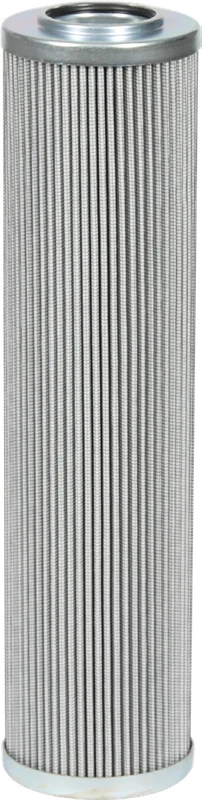

About the Hy-Pro HPMF1L6-125WB
Hy-Pro HPMF1L6-125WB is a filter element rated at 25 µm (125 µm nominal), a beta ratio of β ≥ 200, 150 psid collapse pressure, and measuring 1.748 in OD, 0.875 in ID, and 6.3 in length. It uses SS Wire Mesh media and Nitrile (Buna-N) seals, rated for -45 °F to 225 °F (Hy-Pro HPMF1L-P.pdf).
What replaces the Hy-Pro HPMF1L6-125WB?
1 published cross-reference on file. Select to expand.
What replaces the Hy-Pro HPMF1L6-125WB?
1 published cross-reference on file. Select to expand.
A cross-reference confirms dimensional fit and micron rating, not performance equivalence. Beta ratio, collapse rating, media, and service life can differ between brands.
Published cross-references
| Part Number | Manufacturer | Match |
|---|---|---|
| MF0202M125NB | MP Filtri | Verified |
Application & Compatibility
The HY-PRO HPMF1L6-125WB is designed for use in hydraulic and lubrication filtration systems. With a 125µm nominal (β-rated, absolute 25µm) rating, this element is suitable for pump and component protection in industrial hydraulic circuits. Nitrile (Buna-N) seals provide compatibility with standard petroleum-based fluids and mineral oils.
The 150 PSID collapse rating indicates the maximum differential pressure this element can withstand during cold starts or bypass conditions without structural failure. Ensure your system's maximum differential pressure does not exceed this rating.
Frequently Asked Questions
What micron rating is the Hy-Pro HPMF1L6-125WB?
What seal material does the Hy-Pro HPMF1L6-125WB use?
Is there a cross-reference for the Hy-Pro HPMF1L6-125WB?
What is the collapse pressure rating of the Hy-Pro HPMF1L6-125WB?
What is the operating temperature range for the Hy-Pro HPMF1L6-125WB?
How this entry is verified
Every specification on this page names its source: manufacturer documents first, distributor catalogs second, decoded part-number patterns labeled as such. When a value has not been verified from an OEM source, the cell says so. Cross-references are fit claims, never performance claims.
