Hy-Pro
Hy-Pro HPKL18-1MB

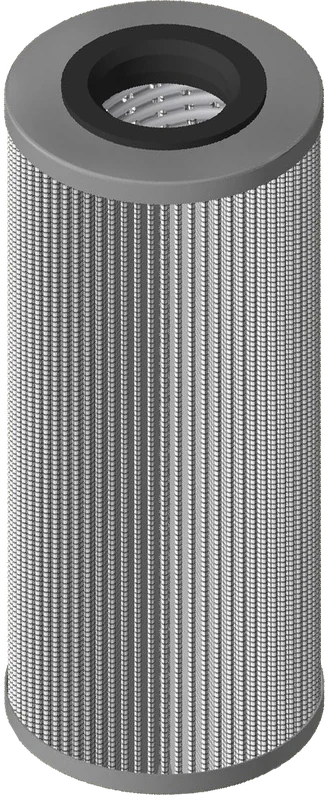

HPKL series filter element
Hy-Pro HPKL18-1MB specifications
The Hy-Pro HPKL18-1MB is a 1µm nominal (β-rated, absolute 3µm) dualglass filter element. It measures 3.88" OD x 1.61" ID x 18.75" long. Filtration efficiency is rated at β4000 per ISO 16889. Seals are Nitrile (Buna-N), rated for -45°F to 225°F. Collapse pressure rating is 290 PSID. 21 verified cross-references are available from aftermarket manufacturers. Specifications verified. Last reviewed: May 2026
Physical fit
- Outer Diameter (O.D.)
- 3.88"OEM-published
- Inner Diameter (I.D.)
- 1.61"OEM-published
- Overall Length
- 18.75"OEM-published
- Micron Rating
- 1µm nominal (β-rated, absolute 3µm)OEM-published
- Seal Material
- Nitrile (Buna-N)OEM-published
- Connection / Thread
- Not yet verified from an OEM source
Performance: Hy-Pro published values
These are Hy-Pro's own published numbers. Performance specs differ by brand and are never inherited across cross-references.
- Efficiency (ISO 16889)
- β4000
- Efficiency
- 99.97%
- Media Type
- DualglassG8 High-performance glass fiber media
- Collapse Rating
- 290 PSID
- Max Operating Pressure
- 100 psi (6.9 bar)
- Operating Temperature
- -45°F to 225°F
- Series
- HPKL
Additional
- Filter Type
- In-Tank Element
- Element Length
- 18" (457 mm)
- Beta Ratio
- β3[C] ≥ 4000
- Max Temperature
- 225°F (107°C)
About the Hy-Pro HPKL18-1MB
Hy-Pro HPKL18-1MB is a filter element rated at 3 µm (1 µm nominal), a beta ratio of β ≥ 4000, 290 psid collapse pressure, and measuring 3.88 in OD, 1.61 in ID, and 18.75 in length. It uses Dualglass media and Nitrile (Buna-N) seals, rated for -45 °F to 225 °F (Donaldson Hy-Pro HP101 Data Sheet FE-101-071724, p.4).
What replaces the Hy-Pro HPKL18-1MB?
21 published cross-references on file. Select to expand.
What replaces the Hy-Pro HPKL18-1MB?
21 published cross-references on file. Select to expand.
A cross-reference confirms dimensional fit and micron rating, not performance equivalence. Beta ratio, collapse rating, media, and service life can differ between brands.
Published cross-references
| Part Number | Manufacturer | Match |
|---|---|---|
| SF9700-18-1UM | Swift Filters | Sourced |
| MP4401 | MP Filtri | Verified |
| HC9700FDZ18H | Pall | Verified |
| HC9700FKZ18H | Pall | Verified |
| HC9700FUZ18H | Pall | Verified |
| KKS.5 | Schroeder | Verified |
| KKZ1 | Schroeder | Verified |
| 2970L01B18 | Separation Technologies | Verified |
| 3970GGBB18 | Separation Technologies | Verified |
| V4051B6C01 | Vickers | Verified |
| HC9720FKZ18H | Pall | Verified |
| HC9700FMZ18H | Pall | Verified |
| HC9720FMZ18H | Pall | Verified |
| 9700EAL012N2 | Purolator | Verified |
| A912507 | Kaydon | Verified |
| KMPKA01B18 | Kaydon | Verified |
| 5.03.18D01BN | Hydac | Verified |
| 2088528 | Hydac | Verified |
| 02088528 | Hydac | Verified |
| HC9700FCZ18H | Pall | Verified |
| HC9720FCZ18H | Pall | Verified |
Application & Compatibility
The HY-PRO HPKL18-1MB is designed for use in hydraulic and lubrication filtration systems. With a 1µm nominal (β-rated, absolute 3µm) rating, this element is suitable for proportional valve protection and general hydraulic systems. Nitrile (Buna-N) seals provide compatibility with standard petroleum-based fluids and mineral oils.
The 290 PSID collapse rating indicates the maximum differential pressure this element can withstand during cold starts or bypass conditions without structural failure. Ensure your system's maximum differential pressure does not exceed this rating.
Frequently Asked Questions
What micron rating is the Hy-Pro HPKL18-1MB?
What are the dimensions of the Hy-Pro HPKL18-1MB?
What seal material does the Hy-Pro HPKL18-1MB use?
Is there a cross-reference for the Hy-Pro HPKL18-1MB?
What is the collapse pressure rating of the Hy-Pro HPKL18-1MB?
What is the operating temperature range for the Hy-Pro HPKL18-1MB?
How this entry is verified
Every specification on this page names its source: manufacturer documents first, distributor catalogs second, decoded part-number patterns labeled as such. When a value has not been verified from an OEM source, the cell says so. Cross-references are fit claims, never performance claims.
