Hy-Pro HP95RNL36-12MB
HP95RNL series filter element
Hy-Pro HP95RNL36-12MB specifications
The Hy-Pro HP95RNL36-12MB is a 12µm dualglass filter element. Filtration efficiency is rated at β4000 per ISO 16889. Seals are Nitrile (Buna-N), rated for -45°F to 225°F. Collapse pressure rating is 150 PSID. 21 verified cross-references are available from aftermarket manufacturers.
Physical fit
- Outer Diameter (O.D.)
- Not yet verified from an OEM source
- Inner Diameter (I.D.)
- Not yet verified from an OEM source
- Overall Length
- Not yet verified from an OEM source
- Micron Rating
- 12µmInherited from cross-reference
- Seal Material
- Nitrile (Buna-N)Inherited from cross-reference
- Connection / Thread
- Not yet verified from an OEM source
Performance: Hy-Pro published values
These are Hy-Pro's own published numbers. Performance specs differ by brand and are never inherited across cross-references.
- Efficiency (ISO 16889)
- β4000
- Efficiency
- 99.97%
- Media Type
- DualglassG8 High-performance glass fiber media
- Collapse Rating
- 150 PSID
- Operating Temperature
- -45°F to 225°F
- Series
- HP95RNL
About the Hy-Pro HP95RNL36-12MB

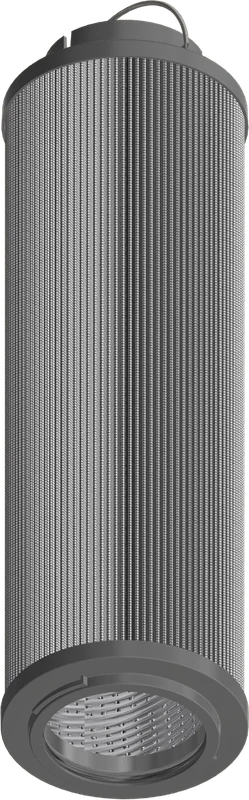

Hy-Pro HP95RNL36-12MB hydraulic filter element. Corrosion resistant steel end caps and center tube. Nitrile seals (-45°F to 225°F).
What replaces the Hy-Pro HP95RNL36-12MB?
21 published cross-references on file. Select to expand.
What replaces the Hy-Pro HP95RNL36-12MB?
21 published cross-references on file. Select to expand.
A cross-reference confirms dimensional fit and micron rating, not performance equivalence. Beta ratio, collapse rating, media, and service life can differ between brands.
Published cross-references
| Part Number | Manufacturer | Match |
|---|---|---|
| SF950RN-36-12UM | Swift Filters | Sourced |
| 2600R010BN3HC | Hydac | Verified |
| 2600R010BNHC | Hydac | Verified |
| 2600R010P/HC | Hydac | Verified |
| MP5059 | MP Filtri | Verified |
| MP8113 | MP Filtri | Verified |
| HC2295FDS36H | Pall | Verified |
| HC2295FKS36H | Pall | Verified |
| HC2295FUS36H | Pall | Verified |
| H2600R-012E-B-3 | PTI | Verified |
| 934234 | Parker | Verified |
| E2602B8C10 | Western | Verified |
| E2602B8P10 | Western | Verified |
| V2602B8C10 | Western | Verified |
| V2602B8P10 | Western | Verified |
| U5794 | Norman | Verified |
| RE600N10B | Stauff | Verified |
| DC260CA10AN-PXX | MP Filtri | Verified |
| DK340A010ANCPXX | MP Filtri | Verified |
| HC2295FMS36H | Pall | Verified |
| 934234Q | Parker | Verified |
Application & Compatibility
The HY-PRO HP95RNL36-12MB is designed for use in hydraulic and lubrication filtration systems. With a 12µm rating, this element is suitable for proportional valve protection and general hydraulic systems. Nitrile (Buna-N) seals provide compatibility with standard petroleum-based fluids and mineral oils.
The 150 PSID collapse rating indicates the maximum differential pressure this element can withstand during cold starts or bypass conditions without structural failure. Ensure your system's maximum differential pressure does not exceed this rating.
Frequently Asked Questions
What micron rating is the Hy-Pro HP95RNL36-12MB?
What seal material does the Hy-Pro HP95RNL36-12MB use?
Is there a cross-reference for the Hy-Pro HP95RNL36-12MB?
What is the collapse pressure rating of the Hy-Pro HP95RNL36-12MB?
What is the operating temperature range for the Hy-Pro HP95RNL36-12MB?
How this entry is verified
Every specification on this page names its source: manufacturer documents first, distributor catalogs second, decoded part-number patterns labeled as such. When a value has not been verified from an OEM source, the cell says so. Cross-references are fit claims, never performance claims.
