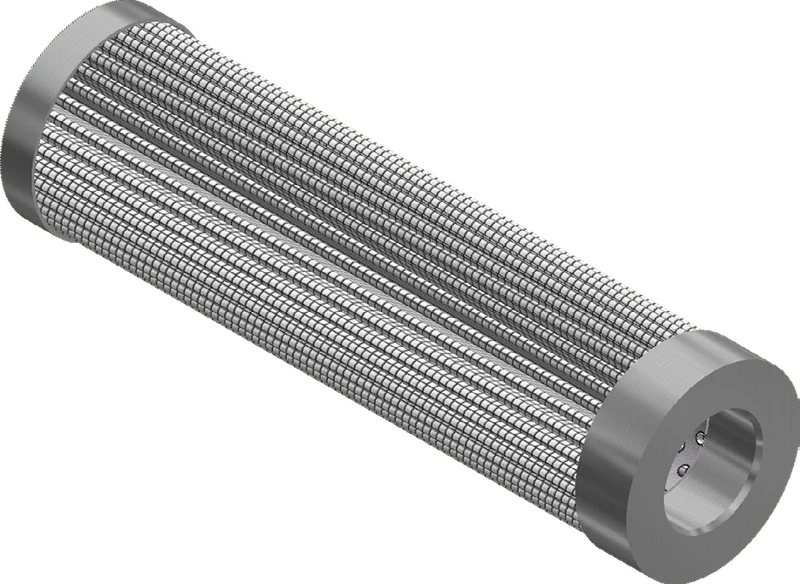

Hy-Pro HP251L7-25M
Industrial filter element
Hy-Pro HP251L7-25M specifications
The Hy-Pro HP251L7-25M is a 25µm nominal (β-rated, absolute 22µm) dualglass filter element. It measures 1.876" OD x 1.007" ID x 6.72" long. Filtration efficiency is rated at β4000 per ISO 16889. Seals are Buna-N. Collapse pressure rating is 3000 PSID. 21 verified cross-references are available from aftermarket manufacturers. Specifications verified. Last reviewed: March 2026
Physical fit
- Outer Diameter (O.D.)
- 1.876"OEM-published
- Inner Diameter (I.D.)
- 1.007"OEM-published
- Overall Length
- 6.72"OEM-published
- Micron Rating
- 25µm nominal (β-rated, absolute 22µm)OEM-published
- Seal Material
- Buna-NOEM-published
- Connection / Thread
- Not yet verified from an OEM source
Performance: Hy-Pro published values
These are Hy-Pro's own published numbers. Performance specs differ by brand and are never inherited across cross-references.
- Efficiency (ISO 16889)
- β4000
- Efficiency
- 99.97%
- Media Type
- DualglassG8 High-performance glass fiber media
- Collapse Rating
- 3000 PSID
About the Hy-Pro HP251L7-25M
Hy-Pro HP251L7-25M is a filter element rated at 22 µm (25 µm nominal), a beta ratio of β ≥ 4000, 3000 psid collapse pressure, and measuring 1.876 in OD, 1.007 in ID, and 6.72 in length. It uses Dualglass media and Buna-N seals (Hy-Pro 17C-011 drawing).
What replaces the Hy-Pro HP251L7-25M?
21 published cross-references on file. Select to expand.
What replaces the Hy-Pro HP251L7-25M?
21 published cross-references on file. Select to expand.
A cross-reference confirms dimensional fit and micron rating, not performance equivalence. Beta ratio, collapse rating, media, and service life can differ between brands.
Published cross-references
| Part Number | Manufacturer | Match |
|---|---|---|
| SF025-7-25MGHP | Swift Filters | Sourced |
| Pi4208SMVST25 | Mahle | Verified |
| Pi4208SMXVST25 | Mahle | Verified |
| MP12012 | MP Filtri | Verified |
| 935228 | Parker | Verified |
| PR2843 | Parker | Verified |
| 9640510155 | PTI | Verified |
| PG-025-JU | PTI | Verified |
| 9650510155 | Purolator | Verified |
| 04.PI4208.25VG.HR.E.O | Internormen | Verified |
| 301049 | Internormen | Verified |
| 301049-25VG | Internormen | Verified |
| 7680515 | Mahle | Verified |
| 935228Q | Parker | Verified |
| 2080D20BH | Hydac | Verified |
| 2080D20BH3 | Hydac | Verified |
| R928018505 | Rexroth | Verified |
| 18.4208H20XL-F00-0-M | EPE | Verified |
| 77680515 | Mahle | Verified |
| Pi4208PSVST25 | Mahle | Verified |
| PR2843Q | Parker | Verified |
Application & Compatibility
The HY-PRO HP251L7-25M is designed for use in hydraulic and lubrication filtration systems. With a 25µm nominal (β-rated, absolute 22µm) rating, this element is suitable for pump and component protection in industrial hydraulic circuits. Buna-N seals provide compatibility with standard petroleum-based fluids and mineral oils.
The 3000 PSID collapse rating indicates the maximum differential pressure this element can withstand during cold starts or bypass conditions without structural failure. Ensure your system's maximum differential pressure does not exceed this rating.
Frequently Asked Questions
What micron rating is the Hy-Pro HP251L7-25M?
What are the dimensions of the Hy-Pro HP251L7-25M?
What seal material does the Hy-Pro HP251L7-25M use?
Is there a cross-reference for the Hy-Pro HP251L7-25M?
What is the collapse pressure rating of the Hy-Pro HP251L7-25M?
