Hy-Pro
Hy-Pro HP21L8-2MV

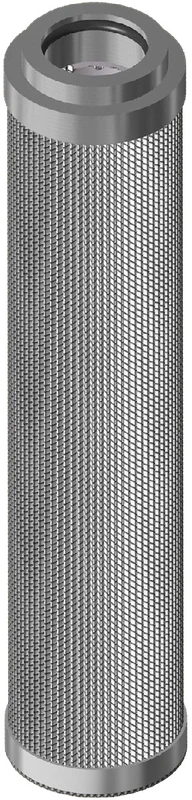

Industrial filter element
Hy-Pro HP21L8-2MV specifications
The Hy-Pro HP21L8-2MV is a 2µm nominal (β-rated, absolute 5µm) dualglass filter element. It measures 1.78" OD x 1.05" ID x 8.18" long. Filtration efficiency is rated at β4000 per ISO 16889. Seals are Fluorocarbon (Viton), rated for -20°F to 250°F. Collapse pressure rating is 3000 PSID. 22 verified cross-references are available from aftermarket manufacturers. Specifications verified. Last reviewed: April 2026
Physical fit
- Outer Diameter (O.D.)
- 1.78"OEM-published
- Inner Diameter (I.D.)
- 1.05"OEM-published
- Overall Length
- 8.18"OEM-published
- Micron Rating
- 2µm nominal (β-rated, absolute 5µm)OEM-published
- Seal Material
- Fluorocarbon (Viton)OEM-published
- Connection / Thread
- Not yet verified from an OEM source
Performance: Hy-Pro published values
These are Hy-Pro's own published numbers. Performance specs differ by brand and are never inherited across cross-references.
- Efficiency (ISO 16889)
- β4000
- Efficiency
- 99.97%
- Media Type
- DualglassG8 High-performance glass fiber media
- Collapse Rating
- 3000 PSID
- Max Operating Pressure
- 4000 psi (275 bar)
- Operating Temperature
- -20°F to 250°F
- Series
- High Pressure In-Line Filter Element (High Collapse)
Additional
- Filter Type
- Cartridge Element
- Element Length
- 8" (203 mm)
- Beta Ratio
- β5[C] ≥ 4000
- Max Temperature
- 225°F (107°C)
About the Hy-Pro HP21L8-2MV
Hy-Pro HP21L8-2MV is a filter element rated at 5 µm (2 µm nominal), a beta ratio of β ≥ 4000, 3000 psid collapse pressure, and measuring 1.78 in OD, 1.05 in ID, and 8.18 in length. It uses Dualglass media and Fluorocarbon (Viton) seals, rated for -20 °F to 250 °F (Hy-Pro part number decoder).
What replaces the Hy-Pro HP21L8-2MV?
22 published cross-references on file. Select to expand.
What replaces the Hy-Pro HP21L8-2MV?
22 published cross-references on file. Select to expand.
A cross-reference confirms dimensional fit and micron rating, not performance equivalence. Beta ratio, collapse rating, media, and service life can differ between brands.
Published cross-references
| Part Number | Manufacturer | Match |
|---|---|---|
| TTSFP02881 | — | Verified |
| SF9021-8-3UMV | Swift Filters | Sourced |
| H8052 | Baldwin | Verified |
| H9051 | Baldwin | Verified |
| C925669 | Commercial | Verified |
| C927723 | Commercial | Verified |
| HPD208V03 | Diagnetics | Verified |
| P167182 | Donaldson | Verified |
| HF7450 | Fleetguard | Verified |
| H-9021/8-003BH3-V | Hydac | Verified |
| H-9021/8-003BH-V | Hydac | Verified |
| 0590213VG8 | Internormen | Verified |
| B64564-2 | Moog | Verified |
| MP3803 | MP Filtri | Verified |
| HC9021FDP8Z | Pall | Verified |
| HC9021FUP8Z | Pall | Verified |
| 925669 | Parker | Verified |
| 927723 | Parker | Verified |
| 927723Q | Parker | Verified |
| 928339Q | Parker | Verified |
| 932619Q | Parker | Verified |
| 933578Q | Parker | Verified |
Application & Compatibility
The HY-PRO HP21L8-2MV is designed for use in hydraulic and lubrication filtration systems. With a 2µm nominal (β-rated, absolute 5µm) rating, this element is suitable for pump and component protection in industrial hydraulic circuits. Fluorocarbon (Viton) seals provide compatibility with petroleum-based fluids, synthetic fluids, phosphate esters, and water-glycol mixtures.
The 3000 PSID collapse rating indicates the maximum differential pressure this element can withstand during cold starts or bypass conditions without structural failure. Ensure your system's maximum differential pressure does not exceed this rating.
Frequently Asked Questions
What micron rating is the Hy-Pro HP21L8-2MV?
What are the dimensions of the Hy-Pro HP21L8-2MV?
What seal material does the Hy-Pro HP21L8-2MV use?
Is there a cross-reference for the Hy-Pro HP21L8-2MV?
What is the collapse pressure rating of the Hy-Pro HP21L8-2MV?
What is the operating temperature range for the Hy-Pro HP21L8-2MV?
How this entry is verified
Every specification on this page names its source: manufacturer documents first, distributor catalogs second, decoded part-number patterns labeled as such. When a value has not been verified from an OEM source, the cell says so. Cross-references are fit claims, never performance claims.
