Hy-Pro
Hy-Pro HP1200L15-25M
HP1200L series filter element
Hy-Pro HP1200L15-25M specifications

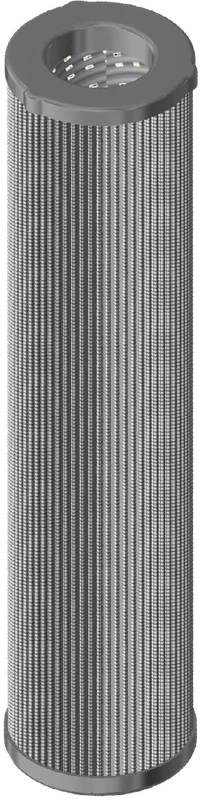

The Hy-Pro HP1200L15-25M is a 25µm nominal (β-rated, absolute 22µm) dualglass filter element. It measures 3.32" OD x 1.86" ID x 14.702" long. Filtration efficiency is rated at β4000 per ISO 16889. Seals are Buna-N. Collapse pressure rating is 450 PSID. 22 verified cross-references are available from aftermarket manufacturers. Specifications verified. Last reviewed: May 2026
Physical fit
- Outer Diameter (O.D.)
- 3.32"OEM-published
- Inner Diameter (I.D.)
- 1.86"OEM-published
- Overall Length
- 14.702"OEM-published
- Micron Rating
- 25µm nominal (β-rated, absolute 22µm)OEM-published
- Seal Material
- Buna-NOEM-published
- Connection / Thread
- Not yet verified from an OEM source
Performance: Hy-Pro published values
These are Hy-Pro's own published numbers. Performance specs differ by brand and are never inherited across cross-references.
- Efficiency (ISO 16889)
- β4000
- Efficiency
- 99.97%
- Media Type
- DualglassG8 High-performance glass fiber media
- Collapse Rating
- 450 PSID
- Series
- HP1200L
About the Hy-Pro HP1200L15-25M
Hy-Pro HP1200L15-25M is a filter element rated at 22 µm (25 µm nominal), a beta ratio of β ≥ 4000, 450 psid collapse pressure, and measuring 3.36 in OD, 1.86 in ID, and 14.7 in length. It uses Dualglass media and Buna-N seals (Hy-Pro 18A-036 drawing).
What replaces the Hy-Pro HP1200L15-25M?
22 published cross-references on file. Select to expand.
What replaces the Hy-Pro HP1200L15-25M?
22 published cross-references on file. Select to expand.
A cross-reference confirms dimensional fit and micron rating, not performance equivalence. Beta ratio, collapse rating, media, and service life can differ between brands.
Published cross-references
| Part Number | Manufacturer | Match |
|---|---|---|
| SF120-15-25C | Swift Filters | Sourced |
| SF120-15-25MG | Swift Filters | Sourced |
| FC5014F025BS | Finn | Verified |
| Pi1045MIC25 | Mahle | Verified |
| Pi4145 | Mahle | Verified |
| Pi4145SM25 | Mahle | Verified |
| Pi4145SMX25 | Mahle | Verified |
| MP12033 | MP Filtri | Verified |
| HC2235FDT15H | Pall | Verified |
| HC2235FDT15Z | Pall | Verified |
| HC2235FKT15H | Pall | Verified |
| HC2235FKT15Z | Pall | Verified |
| HC2235FUT15H | Pall | Verified |
| HC2235FUT15Z | Pall | Verified |
| 935249 | Parker | Verified |
| PR2869 | Parker | Verified |
| PR2872 | Parker | Verified |
| 9640514105 | PTI | Verified |
| PG-120-DH | PTI | Verified |
| PG-120-JH | PTI | Verified |
| 9640514152 | PTI | Verified |
| Pi1045KSMIC25 | Mahle | Verified |
Application & Compatibility
The HY-PRO HP1200L15-25M is designed for use in hydraulic and lubrication filtration systems. With a 25µm nominal (β-rated, absolute 22µm) rating, this element is suitable for pump and component protection in industrial hydraulic circuits. Buna-N seals provide compatibility with standard petroleum-based fluids and mineral oils.
The 450 PSID collapse rating indicates the maximum differential pressure this element can withstand during cold starts or bypass conditions without structural failure. Ensure your system's maximum differential pressure does not exceed this rating.
Frequently Asked Questions
What micron rating is the Hy-Pro HP1200L15-25M?
What are the dimensions of the Hy-Pro HP1200L15-25M?
What seal material does the Hy-Pro HP1200L15-25M use?
Is there a cross-reference for the Hy-Pro HP1200L15-25M?
What is the collapse pressure rating of the Hy-Pro HP1200L15-25M?
How this entry is verified
Every specification on this page names its source: manufacturer documents first, distributor catalogs second, decoded part-number patterns labeled as such. When a value has not been verified from an OEM source, the cell says so. Cross-references are fit claims, never performance claims.
